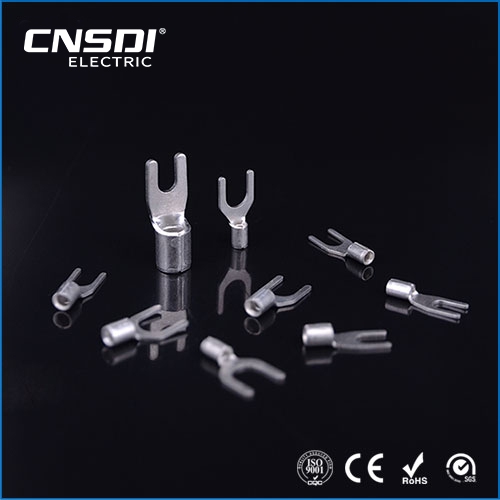

Non insulated Spade terminals
Sodd Non insulated Spade terminals are made of high-quality, oxygen-free copper with tin-plating to defense against corrosion, mechanical stress or tension.
This kind of Non insulated Spade terminals is effortless to be connected to a wire by a standard crimper.
Spade Terminal Type
PVC Spade Terminal
Nylon Spade Terminals
Heat Shrink Spade Terminal
Non-insulated Spade Terminals
Sodd Non insulated Spade terminals have many insulation types due to the insulation material changes in different using places.
The Vinyl insulated terminal is the most popular type among all the types.
Nylon fork terminals are convenient for use because wires can be seen clearly through the insulation.
Heat shrink fork terminal can have the function of water-proof.
Double crimp fork terminals with extra sleeves help your wire to connect the terminals more solidly.
Material
Terminal Body:Copper
Brazed Seam
Plating:Tin
| spec(mm²) | 1.25 | 2 | 3.5 | 5.5 | 8 | 14 | 22 |
| Max current(A) | 19 | 27 | 37 | 48 | 62 | 88 | 15 |
Surface treatment: tin coating
| Cable Size | ITEM NO. | size(mm) | pcs/pack | |||||||
| d2 | B | F | L | E | D | d | T | |||
| A.W.G. 22-16 0.5 ～ 1.5mm2 |
DSNB1.25-3 | 3.2 | 5.5 | 6.5 | 16 | 5 | 3.5 | 2 | 0.75 | 1000 |
| DSNB1.25-3.5S | 3.7 | 5.5 | 1000 | |||||||
| DSNB1.25-3.5L | 3.7 | 6.5 | 1000 | |||||||
| DSNB1.25-4S | 4.3 | 6.5 | 1000 | |||||||
| DSNB1.25-4M | 4.3 | 7 | 1000 | |||||||
| DSNB1.25-4L | 4.3 | 8 | 1000 | |||||||
| DSNB1.25-5S | 5.3 | 8 | 1000 | |||||||
| DSNB1.25-5L | 5.3 | 9.5 | 1000 | |||||||
| DSNB1.25-6S | 6.4 | 9.5 | 1000 | |||||||
| DSNB1.25-6L | 6.4 | 12 | 11 | 22 | 1000 | |||||
| A.W.G.16 ～ 14 1.5~2.5mm2 |
DSNB2-3 | 3.2 | 5.5 | 6.5 | 16 | 5 | 4 | 2.5 | 0.8 | 1000 |
| DSNB2-3.5S | 3.7 | 5.5 | 1000 | |||||||
| DSNB2-3.5L | 3.7 | 7 | 1000 | |||||||
| DSNB2-4S | 4.3 | 6.5 | 1000 | |||||||
| DSNB2-4M | 4.3 | 7 | 1000 | |||||||
| DSNB2-4L | 4.3 | 8 | 1000 | |||||||
| DSNB2-5S | 5.3 | 8 | 1000 | |||||||
| DSNB2-5L | 5.3 | 9.5 | 1000 | |||||||
| DSNB2-6S | 6.4 | 9.5 | 1000 | |||||||
| DSNB2-6L | 6.4 | 12 | 11 | 22 | 1000 | |||||
| A.W.G.14 ～ 12 2.5 ～ 4mm2 |
DSNB3.5-3 | 3.2 | 5.5 | 7 | 18.5 | 6 | 5 | 3 | 1 | 1000 |
| DSNB3.5-4 | 4.3 | 8 | 1000 | |||||||
| DSNB3.5-5 | 5.3 | 8 | 1000 | |||||||
| DSNB3.5-6 | 6.4 | 12 | 9 | 21.5 | 1000 | |||||
| A.W.G.12 ～ 10 4 ～ 6mm2 |
DSNB5.5-3.5 | 3.7 | 8.5 | 7.5 | 19.5 | 7 | 5.5 | 3.5 | 1 | 1000 |
| DSNB5.5-4S | 4.3 | 8.5 | 1000 | |||||||
| DSNB5.5-4L | 4.3 | 9.5 | 1000 | |||||||
| DSNB5.5-5 | 5.3 | 9 | 1000 | |||||||
| DSNB5.5-6S | 6.4 | 9 | 1000 | |||||||
| DSNB5.5-6L | 6.4 | 12 | 12 | 25.5 | 1000 | |||||
| DSNB5.5-8 | 8.4 | 14 | 11.5 | 24.5 | 1000 | |||||
| A.W.G.8 8mm2 |
DSNB8-4 | 4.3 | 8.5 | 9 | 23.5 | 8.5 | 7 | 5 | 1.2 | 500 |
| DSNB8-5 | 5.3 | 11.5 | 8.5 | 24.5 | 500 | |||||
| DSNB8-6 | 6.4 | 11.5 | 8.5 | 24.5 | 500 | |||||
| DSNB8-8 | 8.4 | 14.5 | 12 | 28.5 | 500 | |||||
| A.W.G.6 14mm2 A.W.G.4 22mm2 |
DSNB14-5 | 5.3 | 11 | 11 | 29 | 10.5 | 9 | 6 | 1.4 | 500 |
| DSNB14-6 | 6.4 | 12 | 10 | 28.5 | 500 | |||||
| DSNB14-8 | 8.4 | 13.5 | 11 | 28.5 | 500 | |||||
| DSNB22-8 | 8.4 | 14 | 13 | 34.5 | 12 | 11.5 | 8 | 1.8 | 500 | |
