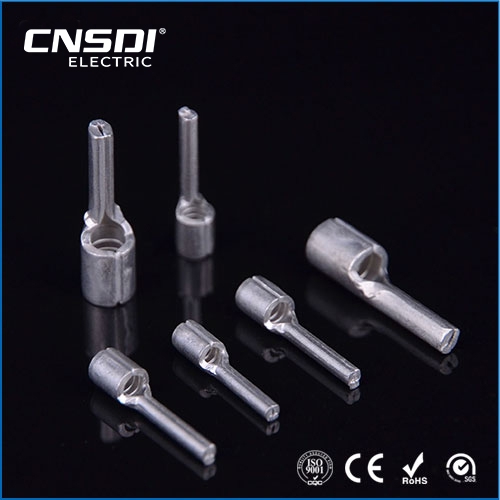

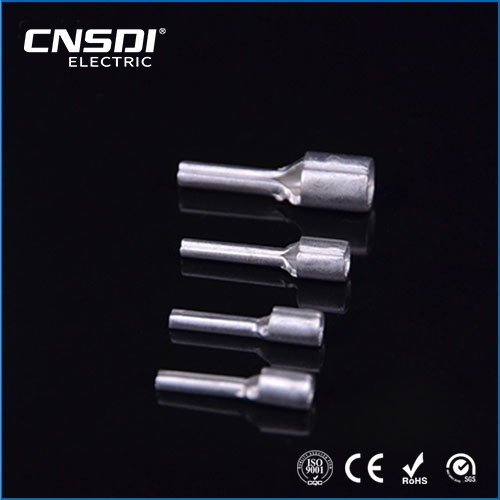

Non insulated Pin terminals
Sodd Non insulated Pin terminals are designed to terminate the end of a cable, before fitting screw type terminal blocks or connectors.
The crimping on cord end terminal then protects the exposed wire strands from damaging the screws in a strong connection.
Non insulated Pin terminal Advantage
Easy entry to make the wire more easy to insert in,
Standard length and extra long are both available
Cord end ferrules kit can be OEM
Non insulated Pin terminals Using Place:
Lighting Industry
Electronics Industry
Material
Terminal Body:Copper
Brazed Seam
Plating:Tin
Material: Copper
| spec(mm²) | 1.25 | 2 | 3.5 | 5.5 |
| Max current(A) | 19 | 27 | 37 | 48 |
Surface treatment: tin coating
| Cable Size | ITEM NO. | Size (mm) | Copper Thickness | pcs/pack | ||||
| L | F | E | D | d | ||||
| A.W.G. 22~16 0.5~1.5mm2 | DPTN1.25-10 | 15 | 2 | 5 | 3.5 | 2 | 0.75 | 1000 |
| DPTN1.25-12 | 17 | 1000 | ||||||
| DPTN1.25-18 | 23 | 1000 | ||||||
| A.W.G. 16~14 1.~2.5mm2 | DPTN2-10 | 15 | 2 | 5 | 4 | 2.5 | 0.8 | 1000 |
| 5DPTN2-12 | 17 | 1000 | ||||||
| DPTN2-18 | 23 | 1000 | ||||||
| A.W.G. 14~12 2.~ 4mm2 | 5 DPTN3.5-10 | 16.5 | 3 | 6.5 | 5 | 3 | 1 | 1000 |
| DPTN3.5-13 | 19.5 | 1000 | ||||||
| A.W.G. 12~10 4~ 6mm2 | DPTN5.5-13 | 20 | 3 | 7 | 5.5 | 3.5 | 1 | 1000 |
| DPTN5.5-18 | 25 | 1000 | ||||||
