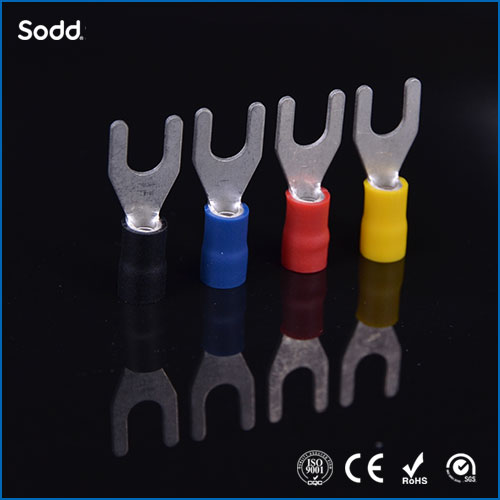

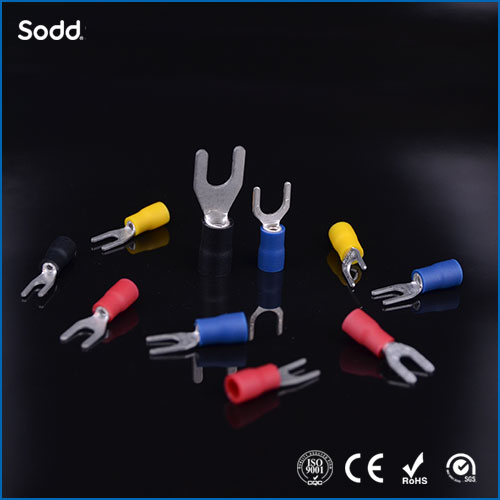

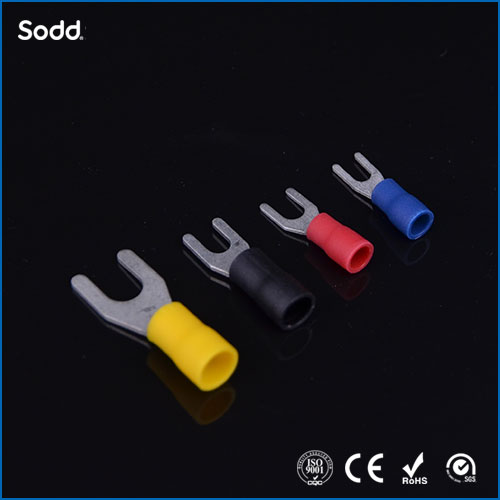

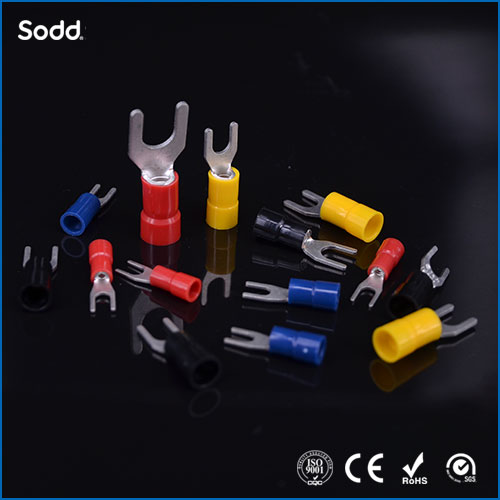

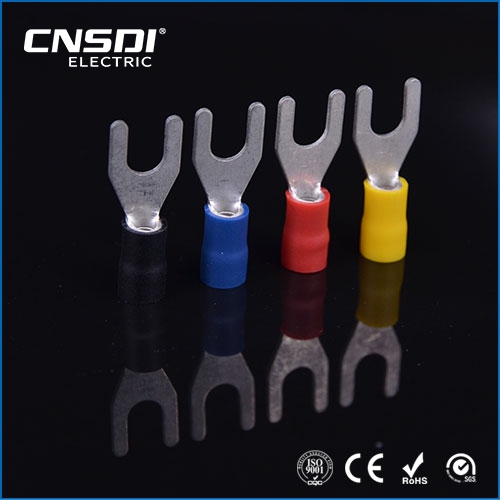

Spade Terminals
Sodd Spade terminals are made of high-quality, oxygen-free copper with tin-plating to defense against corrosion, mechanical stress or tension.
This kind of Spade terminal is effortless to be connected to a wire by a standard crimper.
Spade Terminal Type
PVC Spade Terminal
Nylon Spade Terminal
Heat Shrink Spade Terminal
Non-insulated Spade Terminal
Sodd Spade terminals have many insulation types due to the insulation material changes in different using places.
The Vinyl insulated terminal is the most popular type among all the types.
Nylon fork terminals are convenient for use because wires can be seen clearly through the insulation.

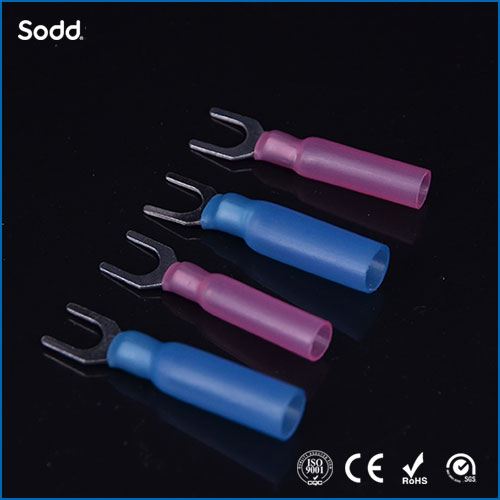

Heat shrink fork terminal can have the function of water-proof.
Double crimp fork terminals with extra sleeves help your wire to connect the terminals more solidly.
RV PVC Spade Terminal
NRV Nylon Spade Terminal
HRV Heat Shrink Spade Terminal
Spade terminal size chart as following:
Cable Size:0.5-1.5mm2(A.W.G 22-16) Max Current:1max=19A
PVC Material: Copper, PVC
Operating voltage: 600V
Temperature withstand: 75℃
Surface treatment of brass parts: tin coating
The terminal body: Copper or Brass material,with Tin plating.
The sleeve:Red/Blue/Black/Yellow etc color.
Certificates: ISO9001,CE,ROHS.
Package:100pcs or 1000pcs in bag, box/bag/plastic box outside package.
Features:Fireproof,Insulate,Easy to use
Offer OEM&ODM service.
According different sleeve materials,will be four kinds: PVC insulated terminals,Nylon insulated terminals,Heat shrinkable terminals and Double sleeve Insulated terminals (Easy Entry).
Our insulated terminals &connectors with Ring/Eyelet type,fork/spade type,blade type,pin type, butt connectors, cord end types,male and female bullet connectors,quick connectors etc all kinds for different usage.
Different wire range (A.W.G.) 0.5-1.5, 1.5-2.5, 2.5-4.0, 4.0-6.0mm2(22-16, 16-14, 14-12, 12-10AWG) or screw size (Inch #6, #8, #10, 1/4, 5/16, 3/8, 1/2).
Usage:put the multi core wire into tube,then use the crimping tools to crimp, insert this cable shoes to brass terminal or electrical applicant.
Application:help multi core wire connection to brass terminal or electrical applicant,applied for kinds of industrial and mining enterprises such as steel smelting, petrochemical industry, electric power, electron, railway, construction, airport, mine, water supply and drain processing factory, port, store, hotel and so on.
Surface treatment of brass parts: tin coating
| spec(mm²) | 1.25 | 2 | 3.5 | 5.5 | 8 | 14 | 22 |
| Max current(A) | 19 | 27 | 37 | 48 | 62 | 88 | 115 |
| Cable Size | ITEM NO. | Size (mm) | Color | pcs/pack | ||||||
| d2 | B | F | L | H | D | T | ||||
| A.W.G. 22-16 0.5~1.5mm2 | DSV1.25-3 | 3.2 | 5.5 | 6.5 | 21 | 10 | 4.5 | 0.75 | red | 1000 |
| DSV1.25-3.5S | 3.7 | 5.5 | 1000 | |||||||
| DSV1.25-3.5L | 3.7 | 6.5 | 1000 | |||||||
| DSV1.25-4S | 4.3 | 6.5 | 1000 | |||||||
| DSV1.25-4M | 4.3 | 7 | 1000 | |||||||
| DSV1.25-4L | 4.3 | 8 | 1000 | |||||||
| DSV1.25-5S | 5.3 | 8 | 1000 | |||||||
| DSV1.25-5L | 5.3 | 9.5 | 1000 | |||||||
| DSV1.25-6S | 6.4 | 9.5 | 1000 | |||||||
| DSV1.25-6L | 6.4 | 12 | 11 | 27 | 1000 | |||||
| A.W.G. 16-14 1.5 ~ 2.5mm2 | DSV2-3 | 3.2 | 5.5 | 6.5 | 21 | 10 | 5 | 0.8 | blue | 1000 |
| DSV2-3.5S | 3.7 | 5.5 | 1000 | |||||||
| DSV2-3.5L | 3.7 | 7 | 1000 | |||||||
| DSV2-4S | 4.3 | 6.5 | 1000 | |||||||
| DSV2-4M | 4.3 | 7 | 1000 | |||||||
| DSV2-4L | 4.3 | 8 | 1000 | |||||||
| DSV2-5S | 5.3 | 8 | 1000 | |||||||
| DSV2-5L | 5.3 | 9.5 | 1000 | |||||||
| DSV2-6S | 6.4 | 9.5 | 1000 | |||||||
| DSV2-6L | 6.4 | 12 | 11 | 27 | 1000 | |||||
| A.W.G. 14-12 2.5~4mm2 | DSV3.5-3 | 3.2 | 5.5 | 7 | 25.5 | 13 | 6 | 1 | black | 1000 |
| DSV3.5-4 | 4.3 | 8 | 1000 | |||||||
| DSV3.5-5 | 5.3 | 8 | 1000 | |||||||
| DSV3.5-6 | 6.4 | 12 | 9 | 28.5 | 500 | |||||
| A.W.G. 12-10 4~6mm2 | DSV5.5-3.5 | 3.7 | 8.5 | 7.5 | 25.5 | 13 | 6.5 | 1 | yellow | 1000 |
| DSV5.5-4S | 4.3 | 8.5 | 1000 | |||||||
| DSV5.5-4L | 4.3 | 9.5 | 1000 | |||||||
| DSV5.5-5 | 5.3 | 9 | 1000 | |||||||
| DSV5.5-6S | 6.4 | 9 | 1000 | |||||||
| DSV5.5-6L | 6.4 | 12 | 12 | 31.5 | 500 | |||||
| DSV5.5-8 | 8.4 | 14 | 11.5 | 30.5 | 15 | 8 | 1.2 | red | 500 | |
| A.W.G. 8 8mm2 | DSV8-4 | 4.3 | 8.5 | 9 | 30 | 500 | ||||
| DSV8-5 | 5.3 | 11.5 | 8.5 | 31 | 500 | |||||
| DSV8-6 | 6.4 | 11.5 | 8.5 | 31 | 500 | |||||
| DSV8-8 | 8.4 | 14.5 | 12 | 35 | 250 | |||||
| A.W.G. 6 14mm2 | DSV14-5 | 5.3 | 11 | 11 | 39 | 20.5 | 10 | 1.4 | blue | 250 |
| DSV14-6 | 6.4 | 12 | 10 | 38.5 | 250 | |||||
| DSV14-8 | 8.4 | 13.5 | 11 | 38.5 | 250 | |||||
| A.W.G. 4 22mm2 | DSV22-8 | 8.4 | 14 | 13 | 46 | 23.5 | 12.5 | 1.8 | 黄 yellow | 100 |
Advantage of Sodd Spade Terminals
1. Four types of insulation can be chosen per different using place: Vinyl insulated fork terminals, Nylon insulated fork terminals, heat shrink insulated fork terminals and double crimp spade terminals.
2. The material is made of 100% pure copper with oxygen free.
3. Smooth appearance with no burs, extra annealing process to make the terminals more strength.
4. CE & SGS standard to ensure all terminals are at the high-quality level.
Sodd Spade terminals Use place
Insulated Spade terminals and non-insulated ring terminals are widely used in the following places:
Used in Automotive for Aftermarket audio and Aftermarket wiring harnesses
Used in Consumer electronics for Appliances, white goods, and brown goods
Used in Industrial applications for Terminal blocks, Sockets, circuit breakers, and Wiring Harnesses.
Used in Industrial Automation like Electrical panels.
This is not a definitive list of applications for this product. It represents some of the more common uses.
Sodd: Your Best Spade Terminal Manufacturer
Other than Ring terminals, Sodd Spade Terminal is also a popular type of terminal.
There’s only a shape difference with the ring terminals. This spade terminals take a fork shape, so it is also sometimes referred to as fork terminal and Y terminal connector.
We highly recommend this fork type because it’s very easy to be connected to a wire by a standard crimper.
This fork shape terminals also have wide-usage.
You can find them in aftermarket audios or videos, wiring harnesses, and some white goods.
DIFVAN fork terminals are made of high-quality, oxygen-free copper with tin-plating to protect against corrosion, mechanical stress or tension.
Sodd terminals forge lasting connections with a variety of types, sizes, and materials that meet a wide application range, including the request of temperature and weather.
Sodd electrical spade terminals and connectors withstand a temperature range from -40 to 105 degrees (-40 to 221 degrees F),600V-rated for building a wire and 1000V for signs, fixtures or luminaries.
So our spade wire terminals can be found everywhere in electrical applications.
Sodd insulated spade terminal provides perfect electrical performance for both small spade terminals and large spade terminals.
When you’re choosing the right fork terminal for your application, please make sure which type of fork terminal you need because we have several kinds of fork terminals.
They are in the same fork shape, just in different insulation.
Now Sodd has three insulated fork terminals: red spade terminal, blue spade terminals, and yellow spade terminals.
These three colors can have amp spade terminals, locking spade terminal, block spade terminal, crimp spade connector and spade wire connectors, waterproof spade connectors.
8 AWG spade terminal and 4 gauge spade terminal are the popular sizes.
If you have any other needs for Terminal Connectors, Sodd also can provide ODM / OEM service for you.
for Other terminals, pls check: Ring Terminal, Female and Male Terminal, Bullet Terminals, Cord End Terminals, Twin Cord end Terminal, Closed End Terminal, Quick Splice Connector.
