Ring Terminals
Sodd Ring Terminal connect one or two wires into a single point. The terminal is made by 99.99% high purity copper for good conductivity and has tin plating for corrosion resistance. Material for copper and insulation part is environmentally friendly, no-halogen, and high temperature resistant.
Ring Terminal Type

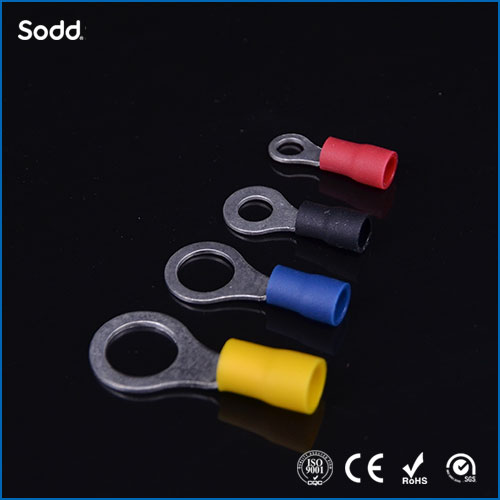

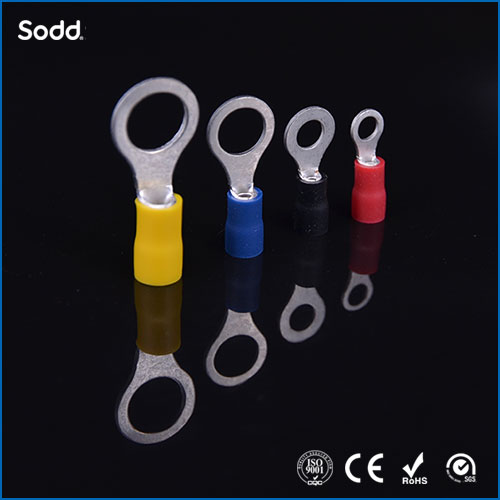

PVC Ring Terminal
Nylon Ring Terminal
Heat Shrink Ring Terminal
Non-insulated Ring Terminal
Sodd Ring terminal hasmanytypes because of the insulation material changes in different applications.
PVC ring terminal is the most commonly used one, Nylon ring terminal is for Flame-retardant and fireproof applications.
Heat shrink ring terminals are for water-proof applications.
Double crimp ring terminals with extra sleeves are for double crimping.
Advantage of Sodd Ring Terminals
1. Sodd ring terminals are pre-insulated with PVC, Nylon and heat shrink on the barrel, suitable for all using place.
2. Sodd Crimp Terminals are constructed of high-quality, oxygen-free copper with tin plating to make it corrosion resistance.
3. Sodd terminals thickness is more than normal terminal’s thickness to make it good quality.
4. Sodd terminals are fire-proofed to keep it safe during usage.
Sodd Ring Terminals Use place
Insulated ring terminals and non-insulated ring terminals are widely used in the following places:
1. Automotive
Aftermarket audio or video
Aftermarket wiring harnesses
2. Consumer
Appliances / white goods
Consumer electronics / brown goods
3. Industrial applications
Terminal blocks, Sockets, circuit breaker
Wiring harnesses
4. Industrial Automation
Electrical panels
This is not a definitive list of applications for this product. It represents some of the more common uses.
How the Ring Terminals Worked:
Step 1: Strip the wire into a proper length
Step 2: Insert the terminals and wire into the proper gauge cavity and squeeze the crimper to crimp the wire part fully.
Step 3: after crimping the terminals to the wires, collect the ring part to a stud size bolt or using a screw, fix the ring stud part.
Data Sheet of Ring Terminal
PVC Material: Copper, PVC
Operating voltage: 600V
Temperature withstand: 75℃
Surface treatment of brass parts: tin coating
The terminal body: Copper or Brass material,with Tin plating.
The sleeve:Red/Blue/Black/Yellow etc color.
Certificates: ISO9001,CE,ROHS.
Package:100pcs or 1000pcs in bag, box/bag/plastic box outside package.
Features:Fireproof,Insulate,Easy to use
Offer OEM&ODM service.
Surface treatment of brass parts: tin coating
| spec(mm²) | 1.25 | 2 | 3.5 | 5.5 |
| Max current(A) | 19 | 27 | 37 | 48 |
| Cable Size | ITEM NO. | Size (mm) | Color | pcs/pack | ||||||
| d2 | B | F | L | H | D | T | ||||
| A.W.G. 22-16 0.5-1.5mm2 | DRV1.25-3 | 3.2 | 5.5 | 5 | 17.5 | 10 | 4.5 | 0.75 | red | 1000 |
| DRV1.25-3.5S | 3.7 | 5.5 | 5 | 17.5 | 1000 | |||||
| DRV1.25-3.5M | 3.7 | 6.5 | 6 | 19.5 | 1000 | |||||
| DRV1.25-4S | 4.3 | 6.5 | 6 | 19.5 | 1000 | |||||
| DRV1.25-4L | 4.3 | 8 | 7 | 21 | 1000 | |||||
| DRV1.25-5 | 5.3 | 8 | 7 | 21 | 1000 | |||||
| DRV1.25-5L | 5.3 | 10 | 8 | 23 | 1000 | |||||
| DRV1.25-6S | 6.4 | 10 | 8 | 23 | 1000 | |||||
| DRV1.25-6 | 6.4 | 11.5 | 11 | 27 | 1000 | |||||
| DRV1.25-8 | 8.4 | 11.5 | 11 | 27 | 1000 | |||||
| DRV1.25-10 | 10.5 | 13.5 | 14 | 30.5 | 1000 | |||||
| DRV1.25-12 | 13 | 19 | 14 | 35.5 | 500 | |||||
| A.W.G. 16-14 1.5 ~ 2.5mm2 | DRV2-3 | 3.2 | 6.5 | 4.5 | 18 | 10 | 5 | 0.8 | blue | 1000 |
| DRV2-3.5S | 3.7 | 6.5 | 4.5 | 18 | 1000 | |||||
| DRV2-3.5M | 3.7 | 6.5 | 6 | 19.5 | 1000 | |||||
| DRV2-4S | 4.3 | 6.5 | 6 | 19.5 | 1000 | |||||
| DRV2-4L | 4.3 | 8.5 | 8 | 22 | 1000 | |||||
| DRV2-5S | 5.3 | 8.5 | 8 | 22 | 1000 | |||||
| DRV2-5L | 5.3 | 9.5 | 7.5 | 22 | 1000 | |||||
| DRV2-6 | 6.4 | 12 | 11 | 27 | 1000 | |||||
| DRV2-8 | 8.4 | 12 | 11 | 27 | 1000 | |||||
| DRV2-10 | 10.5 | 13.5 | 14 | 30.5 | 1000 | |||||
| DRV2-12 | 13 | 19 | 16 | 35.5 | 500 | |||||
| A.W.G. 14-12 2.5~4mm2 | DRV3.5-4 | 4.3 | 8 | 8 | 25 | 13 | 6 | 1 | black | 1000 |
| DRV3.5-5S | 5.3 | 8 | 8 | 25 | 1000 | |||||
| DRV3.5-5L | 5.3 | 12 | 9.5 | 28.5 | 500 | |||||
| DRV3.5-6 | 6.4 | 12 | 9.5 | 28.5 | 500 | |||||
| DRV3.5-8 | 8.4 | 15 | 13.5 | 34 | 500 | |||||
| DRV3.5-10 | 10.5 | 15 | 13.5 | 34 | 500 | |||||
| DRV3.5-12 | 13 | 20 | 15.5 | 38.5 | 500 | |||||
| A.W.G. 12-10 4~6mm2 | DRV5.5-3.5 | 3.7 | 7 | 6 | 22.5 | 13 | 6.5 | 1 | yellow | 1000 |
| DRV5.5-4S | 4.3 | 7 | 6 | 22.5 | 1000 | |||||
| DRV5.5-4L | 4.3 | 9.5 | 8 | 26 | 1000 | |||||
| DRV5.5-5 | 5.3 | 9.5 | 8 | 26 | 1000 | |||||
| DRV5.5-6 | 6.4 | 12 | 10.5 | 29.5 | 500 | |||||
| DRV5.5-8 | 8.4 | 15 | 13.5 | 33.8 | 500 | |||||
| DRV5.5-10 | 10.5 | 15 | 13.5 | 33.8 | 500 | |||||
| DRV5.5-12 | 13 | 19 | 16 | 38.5 | 500 | |||||
| spec(mm²) | 8 | 14 | 22 | 38 |
| Max current(A) | 62 | 88 | 115 | 160 |
| Cable Size | ITEM NO. | Size (mm) | Color | pcs/pack | ||||||
| d2 | B | F | L | H | D | T | ||||
| A.W.G. 8 8mm2 | DRV8-4 | 4.3 | 8.8 | 10.5 | 30 | 15 | 8 | 1.2 | red | 500 |
| DRV8-5S | 5.3 | 8.8 | 10.5 | 30 | 500 | |||||
| DRV8-5M | 5.3 | 12 | 9 | 30 | 500 | |||||
| DRV8-5L | 5.3 | 15 | 14 | 36.5 | 500 | |||||
| DRV8-6S | 6.4 | 12 | 9 | 30 | 500 | |||||
| DRV8-6L | 6.4 | 15 | 14 | 36.5 | 250 | |||||
| DRV8-8 | 8.4 | 15 | 14 | 36.5 | 250 | |||||
| DRV8-10 | 10.5 | 15 | 14 | 36.5 | 250 | |||||
| DRV8-12 | 13 | 22 | 15 | 41 | 250 | |||||
| A.W.G. 6 14mm2 | DRV14-4 | 4.3 | 12 | 13.5 | 39.5 | 20.5 | 10 | 1.4 | blue | 250 |
| DRV14-5 | 5.3 | 12 | 13.5 | 39.5 | 250 | |||||
| DRV14-6S | 6.4 | 12 | 13.5 | 39.5 | 250 | |||||
| DRV14-6L | 6.4 | 16 | 14 | 42.5 | 250 | |||||
| DRV14-8 | 8.4 | 16 | 14 | 42.5 | 250 | |||||
| DRV14-10 | 10.5 | 16 | 14 | 42.5 | 250 | |||||
| DRV14-12 | 13 | 22 | 19.5 | 51 | 200 | |||||
| DRV14-16 | 17 | 30 | 25.5 | 61 | 200 | |||||
| A.W.G. 4 22mm2 | DRV22-5S | 5.3 | 12 | 14.5 | 44 | 23.5 | 12.5 | 1.7 | black | 100 |
| DRV22-5L | 5.3 | 16.5 | 13.5 | 45 | 100 | |||||
| DRV22-6S | 6.4 | 12 | 14.5 | 44 | 100 | |||||
| DRV22-6L | 6.4 | 16.5 | 13.5 | 45 | 100 | |||||
| DRV22-8 | 8.4 | 16.5 | 13.5 | 45 | 100 | |||||
| DRV22-10 | 10.5 | 16.5 | 13.5 | 45 | 100 | |||||
| DRV22-12 | 13 | 22 | 19.5 | 54 | 100 | |||||
| DRV22-14 | 15 | 30 | 25 | 63.5 | 100 | |||||
| DRV22-16 | 17 | 30 | 25 | 63.5 | 100 | |||||
| A.W.G. 2 38mm2 | DRV38-5 | 5.3 | 15.5 | 18.5 | 52.5 | 26.5 | 14.5 | 1.8 | yellow | 50 |
| DRV38-6 | 6.4 | 15.5 | 18.5 | 52.5 | 50 | |||||
| DRV38-8S | 8.4 | 15.5 | 18.5 | 52.5 | 50 | |||||
| DRV38-8L | 8.4 | 22 | 17.5 | 55 | 50 | |||||
| DRV38-10S | 10.5 | 15.5 | 18.5 | 52.5 | 50 | |||||
| DRV38-10L | 10.5 | 22 | 17.5 | 55 | 50 | |||||
| DRV38-12 | 13 | 22 | 17.5 | 55 | 50 | |||||
| DRV38-14 | 15 | 30 | 24 | 65 | 50 | |||||
| DRV38-16 | 17 | 30 | 24 | 65 | 50 | |||||
Sodd: Your Best Ring Terminal Manufacturer

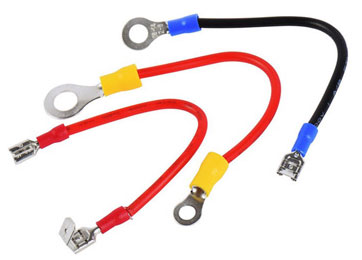

Sodd Ring Terminal and Ring Connectors is one of the most popular terminals.
This kind of ring terminal connects two or more wires to a single connection point such as sockets or circuit protection device.
Copper ring terminals are made of high-purity electrolytic copper for excellent conductivity and have tin plating for corrosion resistance.
Using different mold, the copper piece should be crimped into different sizes under the punching machine.
This is why the ring terminal is also called crimp ring terminal and ring crimp. All Sodd terminals have undergone the process of heat treatment to make the wire ring terminal stronger and not easy to break.
Sodd offers ring terminals in butted seams that are serrated on the barrel for extra grip and easy insertion of electrical wires in any position around the barrel.
Sodd also stock ring terminals with brazed seams, similar to butted seam, but offers extra strength for crimping in any position around the barrel.
Sodd’s Copper terminals create a seamless barrel which allows the terminals for a super fit and maximum electrical performance during crimping with screws or threaded posts. It is widely used in solderless wiring applications
Sodd ring Terminals also called ring connectors, because terminals and connectors sometimes have the same meaning when connected in the wire.
So ring crimp terminal also called ring crimp connector, ring wire terminal also called ring wire connectors, sometimes we both called them to ring terminal connectors.
All terminals are connected into wires and cables, so there’s another name for ring terminals: wire ring terminal or cable ring terminals. Because the terminals are used in electric, so electric ring terminals also can be used.
Because of its production method, solder ring terminal, ring crimp, ring terminal crimp, ring tongue terminals are all names used to refer to the ring terminals.
Famous brand for ring terminals all around the world are: Panduit ring terminals, 3M ring terminals, Burndy ring terminals, Tyco ring terminal, and metric ring terminals.
We Sodd will keep forward to learn from them and provide good quality ring terminals.
If you also looking for other Terminals like: Female Terminal Connectors, Male Terminal Connectors, Butt Connectors, Bullet Connectors, Crimping Tools. here is also the right place for you.
