Usage
GT-G connectors are high voltage copper through connectors designed to joint, splice and connect conductors in high voltage cable applications up to 33kV
Feature
1- Coppe tube material with a high-conductivity and purity greater than 99.5%
2- Annealed and compatible with both Cold Shrink and heat shrink cable joints.
3- Suitable for joining cables of the same insulation type straight through connections on Low Voltage (LV), Medlium Voltage (MV) and High Voltage (HV) cables up to 33kV with XLPE or EPR type insulation.
|

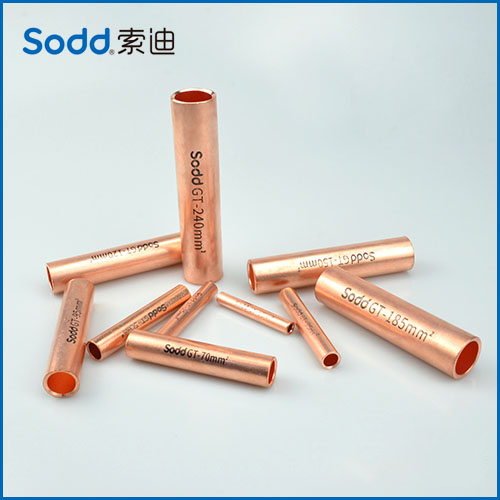

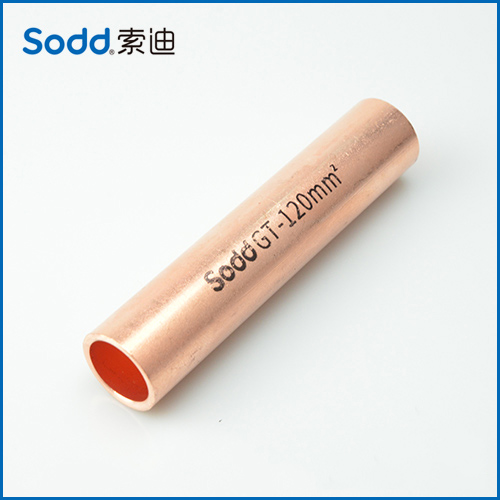

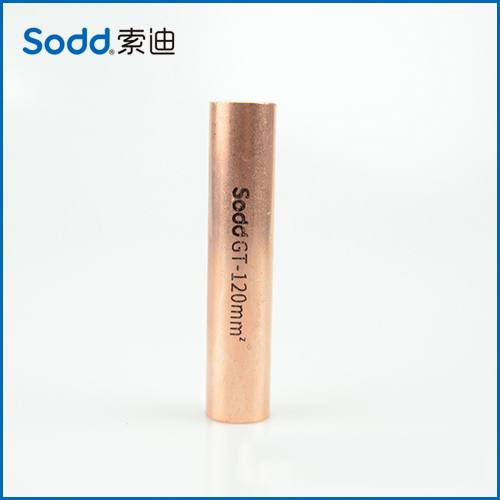

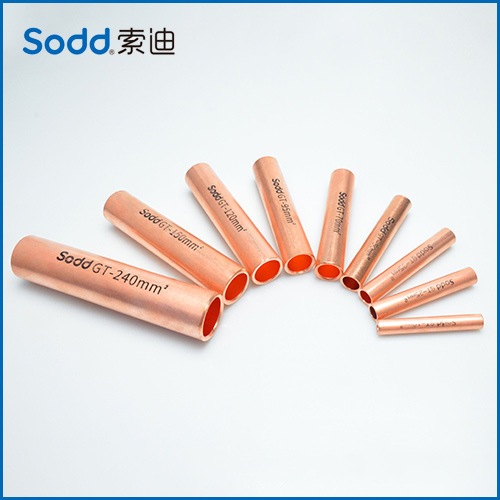

GT-G GT cable lug copper tube
|
|
|
|
|
|
Φ |
Φ |
Package uantity |
|
-10 |
51 0 |
1 2 |
8 0 |
5 6 |
20 |
|
-16 |
56 0 |
1 2 |
9 0 |
6 6 |
|
|
-25 |
60 2 |
1 2 |
10 0 |
7 6 |
|
|
-35 |
63 0 |
1 4 |
11 0 |
8 2 |
|
|
-50 |
71 0 |
1 5 |
13 0 |
10 0 |
|
|
-70 |
75 0 |
1 9 |
16 0 |
12 2 |
10 |
|
-95 |
80 0 |
2 1 |
18 0 |
13 8 |
|
|
-120 |
88 0 |
2 3 |
20 0 |
15 4 |
|
|
-150 |
92 0 |
2 4 |
22 0 |
17 2 |
|
|
-185 |
98 0 |
2 7 |
24 0 |
18 6 |
|
|
-240 |
108 |
2 7 |
26 0 |
20 6 |
|
|
-300 |
120 |
3 0 |
30 0 |
24 0 |
5 |
|
-400 |
120 |
3 7 |
34 0 |
26 6 |
